Mobile Ladders - Telescopic / Portable

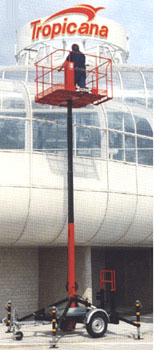

HYDRAULIC TYPE ( Model: TEC )

SYSTEM DESCRIPTION

This equipment is designed to lift a single person with his tools upto height of 6,8 & 10 mts. Lifting will be through a telescopic hydraulic cylinder actuated by power pack AC driven with, 15 mts input cable. The whole equipment can be towed by any vehicle. Usage of foldable Jacks are mandatory. The control pendent is provided on the platform & the main controls are on the trolley.

TECHNICAL SPECIFICATIONS
  • Capacity : 150 kgs.
  • Platform size : 600 x 800 mm
  • Lift / Reach : 6 / 8, 8 / 10, & 10 / 12 mts.
  • Type of lifting : Hydraulic motorized
  • Lifting speed : 4 - 6 mts/min.
  • Motor capacity : 2 HP, AC, 1Ph / 3Ph

Usage of foldable jacks are mandatory.

SLEEK TYPE ( Model: SLK )

SYSTEM DESCRIPTION

This equipment is designed to lift a single person with his tools upto 4.4, 5.9 & 7.5 mts high. Lifting will bethrough manual rope winch. Mechanical locks are provided for safety. The whole equipment can be pushed / pulled manually or can be towed by any driven vehicle.

TECHNICAL SPECIFICATIONS

  • Capacity : 100 kgs.
  • Platform size : 400 x 600 mm
  • Lift / Reach : 4.4 / 6.4 mts
  • 5.9 / 7.9 mts.
  • 7.5 / 9.5 mts.
  • Type of lifting : Manual rope winch
  • Lifting speed : 2 - 3 mts/min.
