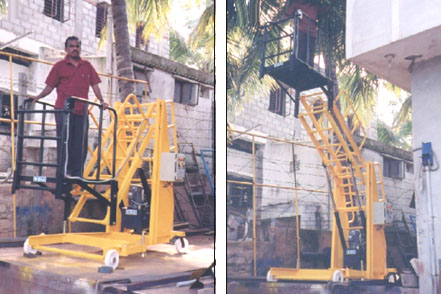

WELDER’S PLATFORM TYPE ( Model: WED )

SYSTEM DESCRIPTION

This equipment, designed for welding/assembly/maintenance purposes can lift up to 3, 4, & 5 mts, accommodating two people along with their tools. Lifting will be through hydraulic twin cylinders actuated by a motorized hydraulic power pack. Manual valve is provided to lower the platform in case of power failure. The whole equipment can be pushed / pulled manually. Usage of foldable jacks are mandatory.

TECHNICAL SPECIFICATIONS

• Capacity : 250 kgs.
• Platform size : 600 x 900 mm
• Additional ladder : Sliding type
• Lift / Reach : 3 / 5, 4 / 6, 5 / 7 mts.
• Type of lifting : Motorized power pack
• Lifting speed : 4 - 6 mts/min.

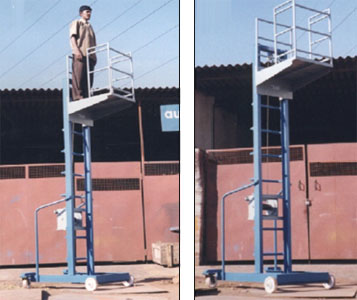

WINCH TYPE ( Model: WIN )

SYSTEM DESCRIPTION

This equipment can lift a single person with his tools up to 2, 3 & 4 mts high. Lifting will be through manual rope winch. Mechanical locks are provided for safety. The whole equipment can be moved by a single person. Usage of foldable jacks are mandatory.

TECHNICAL SPECIFICATIONS

• Capacity : 100 kgs.
• Platform size : 500 x 600 mm
• Lift / Reach : 2 / 4 mts 3 / 5 mts. 4 / 6 mts.
• Type of lifting : Manual rope winch
• Lifting speed : 2 - 3 mts/min.

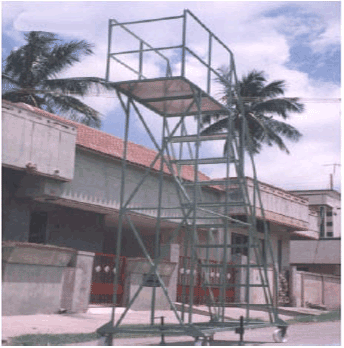

STEP LADDER TYPE ( Model: STP )

SYSTEM DESCRIPTION







equipment can lift up to 2, 2.5 & 3mts high. The platform accommodating a single person with his tools is provided with staircase.. The whole equipment can be pushed / pulled manually . Usage of foldable jacks are mandatory.

TECHNICAL SPECIFICATIONS

• Capacity : 80 kgs.
• Platform size : 500 x 600 mm
• Lift / Reach : 2.0 / 4.0 mts 2.5 / 4.5 mts. 3.0 / 5.0 mts.
• Type of lifting : Manual rope winch
• Way of going up : :Through steps.
